IPL SHR Elight Machine
>
|
|
| Place of Origin | CHINA |
| Brand Name | Astiland |
| Certification | CE, ISO13485 |
| Model Number | AS-f2 |
System introduction
For permanent hair removal,there are 2 classical technologies: IPL and 808nm diode laser. Diode laser hairremoval is a perfect complementary for IPL on dark skin and large area hairremoval treatment. Meanwhile IPL can do multifunctional treatment on vascular,skin aging, freckles and acne.
808nm diode laser system iswidely practiced and ideal hair removal system in clinical use. Selectivephotothermolysis (SPTL), the matching of a specific wavelength of light andpulse duration to obtain optimal effect on a targeted tissue with minimal effecton surrounding tissue. Lasers can cause localized damage by selectively heatingdark target matter, melanin, in the area that causes hair growth, the follicle,while not heating the rest of the skin. The energy absorption of hair folliclemelanin is strongest at 808nm wavelength, which can damage the hair follicleseffectively, meanwhile no adverse reaction to skin surface.
IPL which is short for Intense Pulsed Light uses filtered broadbandlight technology to selectively heat specific targets (chromophores) in theskin. Depending on the wavelength selected, the target chromophores can bemelanin or haemoglobin. In this way, pigmentation, spider veins and hairfollicles can be preferentially destroyed without harming the surroundingnormal skin.
SPECS
| Laser type | IPL | 808nm Diode laser |
| Wavelength |
430/480/530/590/640-1200nm (560/690/755-1200nm optional) |
808nm |
| Spot size | 15*50mm, 8*40mm(optional) | 15mm*20mm |
| Fluence | 1-50J | 1-120J/cm² |
| Laser power | 1200W | 600W |
| Frequency | 1~10hz | |
| Pulse width | 1.0-20.0ms | |
| Pulse number | 1-5 | |
| Pulse delay | 1-50ms | |
| Shot period | 1-4s | |
| Lamp longevity | 200,000 shoots | |
| Machine power | 2500W | |
| Case material | ABS | |
| Display | 8` color touch screen | |
| Cooling system | automatic water detector cooling+air cooling | |
| Power input | AC220V/110V±10%, 50-60HZ | |
| Machine size | 60cm*65cm*40cm | |
| Net weight | 30kg | |
DETAILS
Functions
General rejuvenation(Photorejuvenation)
Pigmentation (sun spots, agespots, freckles, uneven skin tone)
Acne Removal
Spider veins (Telangiectasia)
Hair Removal
Features
1. Multifunctional:2 laser technology combine in 1 system

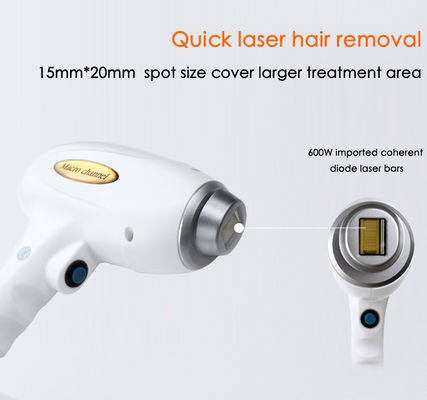

2. Highpower: 1200 W IPL power; 600W imported coherent laser bars, total power 2500W
3. Super cooling system: condenser adopted cooling system ensure longer continuous working hours perfectly match massive treatment needs.
4.Comfortable: 0~-5℃ sapphire contact cooling temperature
5. Easyto use:counting record display on IPL handle and screen, plug and play connectoreasy to interchange.
6. Humanized control: 7 languages option; automatic mode setting by skin color, hair color,hair density; water flow&water temperature auto checking and warning
7. Economical:IPL ensure 200,000 flashes. Diode laser ensure 20,000,000 shoots. Portable design is economical for transportation.
Accessory list
1 x IPL probe
1 x Diode laser probe
5 x IPL filters
1 x Doctor glasses
1 x Goggles
1 x Power Cord
1 x Funnel with connector
1 x Drainage connector
2 x Keys
1 x User Manual
2 x Fuse
