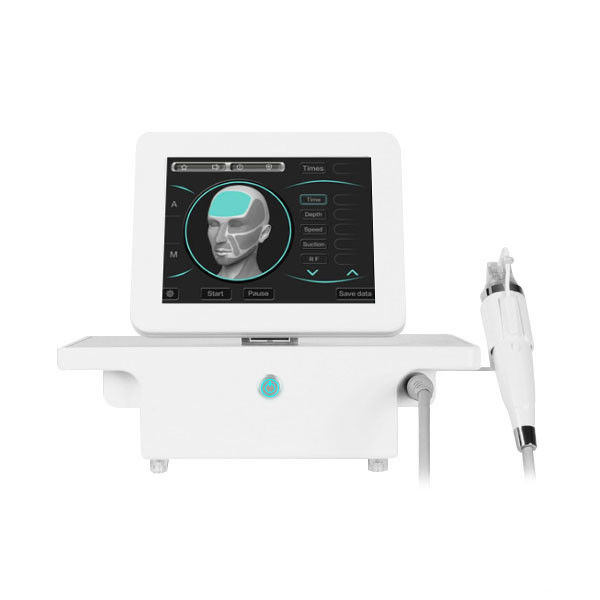

RF Fractional Micro-Needle System Overview
The Secret Micro-Needle Fractional RF System represents cutting-edge technology for skin lifting, tightening, and revitalization. This innovative system utilizes minimally invasive micro-needles to deliver precisely controlled RF (Radio Frequency) energy directly into different depths of the skin. Proven to be highly successful for all skin types, this method minimizes the risks of side effects and Post-Inflammatory Hyperpigmentation (PIH) – a stark contrast to optical-based treatments like IPL and lasers.
RF energy is transmitted through the focused tips of the micro-needles, significantly reducing trauma to the surrounding epidermis. This approach greatly reduces patient discomfort and downtime, distinguishing it from traditional fractional lasers. Non-insulated micro-needles are particularly effective, addressing both epidermal and dermal issues without the need for additional superficial fractional RF treatments (SFR).
Parameter of rf fractional micro needle
| RF frequency | 2MHz, bipolar |
| RF power | 10-200W |
| Needle cartridges | 10pin, 25pin, 64pin, nano chip (option) |
| Needle Thickness | 0.3mm |
| Needle Depth | 0.2-3.5mm (0.1 step) |
| Treatment Duration | 0.1-0.6s |
| Suction level | -2 level |
| Control Display | 8.4 inch color touch screen |
| Voltage | AC 110V/220V, 50Hz/60Hz |
| Weight | 15kg |
| Packing size | 48*35*40cm3 |
Function of rf fractional micro needle
| Face treatment | Body Treatment |
| Non-Surgical Face Lifting | Scars |
| Skin Tightening | Neck Wrinkle |
| Skin Rejuvenation | Stretch Mark |
| Whitening | Axillary Hyperhidrosis |
| Pore Reduction | |
| Acne Scars |
Features
1. Insulated needles: protect epidermis, avoid burning
2. Stepping motor type: needle inserts to skin smoothly without shock
3. Gold plated needles: high biocompatibility, suits metal allergy patient
4. Precise depth control: 0.2-3.5mm in unit of 0.1mm
5. Safety treatment: sterilized disposable needle cartridges
6. Suction combined probe for better skin contact
7. Trigger button handpiece flexible handpiece operation
8. 4 size cartridges suits to different treatment area
Accessory list of rf fractional micro needle
1 x RF needle probe
3 x Disposable needle cartridges (single use only)
1 x Power Cord
1 x User Manual
1 x Handpiece holder and screws
10 pins cartridges: for eye treatment
25 pins cartridges: face treatment
64 pins cartridges: body treatment
Nano chip: Superficial rejuvenation(option)
Accessory list
1 x Main Machine
1 x RF needle probe
3 x Fractional needle cartridges(single use only)
1 x Power Cord
1 x User Manual
Frequently Asked Questions
How long does each treatment session take?
Surface numbing cream takes about 20 to 30 minutes to take effect before the treatment, which itself lasts for 20 to 30 minutes, including post-care. Therefore, each session typically takes about 1 hour. The applicators used are disposable.
What does the treatment feel like?
The treatment is highly tolerable, especially when good local anesthesia is used.
How long is the recovery time after the treatment?
Initially, there might be temporary redness in the treated area for 3-4 hours. Since the treatment targets the deeper layers of the skin, downtime is significantly reduced.
What is the recommended treatment schedule?
The typical interval between sessions is once every 3-4 weeks. Most patients see good results after 2-4 sessions. This may vary based on your skin condition, and your doctor will be able to assess and advise you accordingly.
