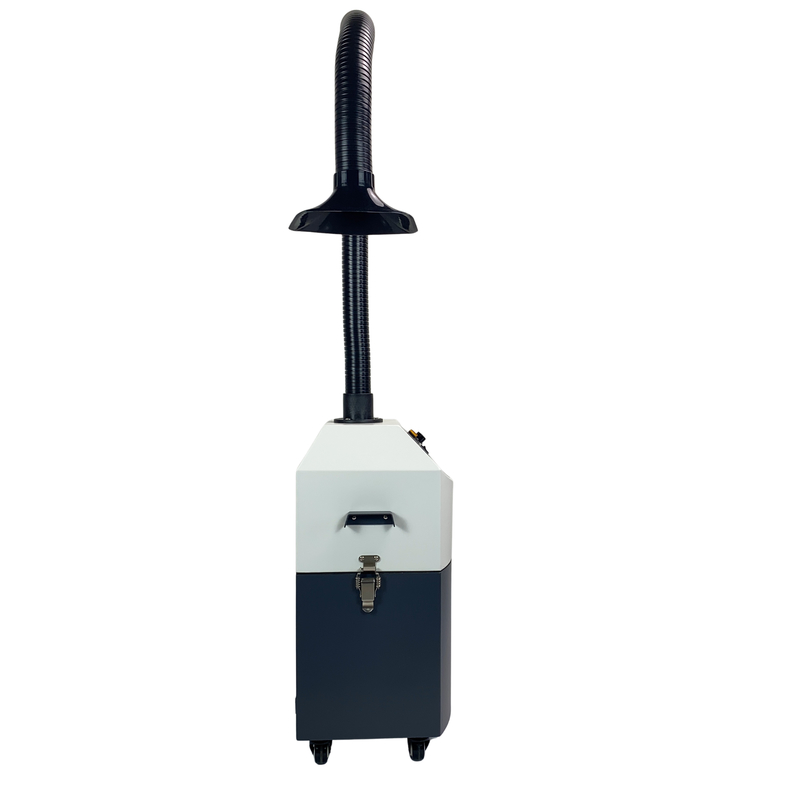

Medical Filter 220V Smoke Evacuator Machine

Basic Information
Place of Origin: CHINA
Brand Name: Astiland
Certification: CE, ISO13485
Model Number: optima-e
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Selling Units: Single item Single package size: 35X38X85 cm Single gross weight: 25.000 kg Package Type: medical co2 air filter suction smoke evacuator system for laser package: carton box
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union, MoneyGram,Credit card,Paypal
Supply Ability: 100 sets per month
Place Of Origin: Hunan, China Brand Name: Astiland
Model Number: Optima-e Q-Switch: No
Laser Type: CO2 Laser Style: Stationary
Type: Laser Application: For Commercial
After-sales Service Provided: Online Support, Video Technical Support Warranty: 1 Year
Name: Surgical Smoke Evacuation Co2 Air Filter For Laser Machine Function: Smoke Evacuator
Filter: 3 Layer Filter Noise: <60db
Control: Button Control Voltage: 220-230V
Hose Diameter: 40mm Diameter Filtration Coefficient: > 99.999%,0.3μm
Activity Radius Of Suction Nuzzle: 280mm Diameter Feature: Smoke Evacuator
High Light:

220V Smoke Evacuator Machine

,

1m3/Min Smoke Evacuator Machine

,

1m3/Min medical smoke evacuator

medical filter smoke evacuation smoke evacuator for laser


Performance description
When carrying out the operation by high-frequency electric knife,CO2 Laser Surgical System, Nd:YAG laser to cut, burn, vaporize, solidify pathological changed tissue,will produce many smoke,odor, particulates.such as steam,CO2,CO,HN3,HCN,H2S,viruses and other harmful, toxic, awful, smelly oil, fogand smoke,etc.
This Smoke evacuator is designed to effectively absorb and filter surgical smoke, odor, particulates, and other potentially hazardous vapour from surgery/operation. It can purified air,reduce the harmful smoke and ensure safe of medical worker and patients.


Function and characteristic
1. Low noise
2. Exhaust-gas can be absorbed and filtered by multilayer
3. High-speed fan can complete movement of gas
4. Activity radius of suction nuzzle is wide
5. Security,trustiness,availability.


The compositions of the smoke plume produced during laser surgery may cause the operating room team at risk.Smoke Evacuator can be used to effectively Eliminate Toxic Surgical Smoke generated during laser surgery.


Product Principle
Our smoke evacuator are designed to effectively capture and filter surgical smoke to remove odor, particulates, and other potentially hazardous by products of electro surgery procedures.


System Features

· Mini size stationary design with universal wheel allowing for easy movement and minimize shipping cost.

· High suction, high flow rate centrifugal pump adopted, excellent particle capture
· User-friendly panel with LED indicator, easy to set up and operate
· Long life 1-3 years filter, simple filter changes
· Filter can capture particulates and micro-organisms down to 0.012um and an efficiency of 99.99995%



Technical parameters



Power requirements 220±22VAC,50±1Hz
7 control mode press button switch
Blowing rate 0—3.2m3/min
flow rate regulation potentiometers(non-hierarchicaltiming) filter mode activated carbon filters,ULPA filter, etc. they have four-storey.
Hose diameter Φ40mm
Maximum diameter of suction nuzzle Φ58mm
Activity radius of suction nuzzle Φ280mm
Noise <60dB
Filtration coefficient > 99.999%,0.3μm
Filter good quality with 3-layer filtering
Packing size 35cm×38cm×85cm
Gross Weight 23kg
Net Weight 13.5kg
