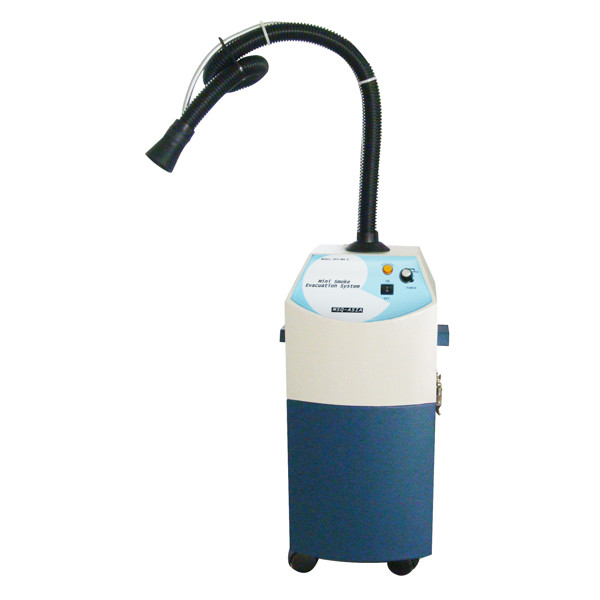

3 Layer Smoke Evacuator Machine Air Cleaning
  • 3 Layer Smoke Evacuator Machine Air Cleaning
  • 3 Layer Smoke Evacuator Machine Air Cleaning
  • 3 Layer Smoke Evacuator Machine Air Cleaning
  • 3 Layer Smoke Evacuator Machine Air Cleaning
  • 3 Layer Smoke Evacuator Machine Air Cleaning
  • 3 Layer Smoke Evacuator Machine Air Cleaning
  • 3 Layer Smoke Evacuator Machine Air Cleaning
3 Layer Smoke Evacuator Machine Air Cleaning

3 Layer Smoke Evacuator Machine Air Cleaning

Place of Origin Hunan, China
Brand Name Astiland
Certification CE、 ISO
Model Number optima-e
Product Details
Product Name:
Smoke Evacuator Machine
Filter Type:
3 Layers
Warranty:
1 Year
Blowing Rate:
0 -3.2m3/min
Activity Radius Of Suction Nuzzle:
280mm
High Light:

3 Layer Smoke Evacuator Machine

,

280mm Air Cleaning Smoke Evacuator Machine

Product Description

3 Layer Smoke Evacuator Machine Air Cleaning Machine

Function and characteristic
1. Low noise
2. Exhaust-gas can be absorbed and filtered by multilayer
3. High-speed fan can complete movement of gas
4. Activity radius of suction nuzzle is wide
5. Security, trustiness, availability.
System Features
· Mini size stationary design with universal wheel allowing for easy movement and minimize shipping cost.
· High suction, high flow rate centrifugal pump adopted, excellent particle capture
· User-friendly panel with LED indicator, easy to set up and operate
· Long life 1-3 years filter, simple filter changes
· Filter can capture particulates and micro-organisms down to 0.012um and an efficiency of 99.99995%
3 Layer Smoke Evacuator Machine Air Cleaning 0
3 Layer Smoke Evacuator Machine Air Cleaning 1
3 Layer Smoke Evacuator Machine Air Cleaning 2
3 Layer Smoke Evacuator Machine Air Cleaning 3
Products Pictures
3 Layer Smoke Evacuator Machine Air Cleaning 4
Parameter
Power requirements
220±22V AC, 50±1Hz
7 control mode press
button switch
Blowing rate
0 —3.2m3/min
Flow rate regulation
potentiometers(non-hierarchical timing)
Filter mode
Activated carbon filters, ULPA filter, etc. Total 4 layers.
Hose diameter
Φ40 mm
Maximum diameter of suction nuzzle
Φ58 mm
Activity radius of suction nuzzle
Φ280mm
Noise
< 60dB
Filtration coefficient
more than 99.999%, 0.3 μm
Power
1300W
Tube length
1.2m
Packing size
35cm×38cm×85cm
Gross Weight
22.7kg
Net Weight
13.5kg



Company Profile
3 Layer Smoke Evacuator Machine Air Cleaning 5
3 Layer Smoke Evacuator Machine Air Cleaning 6
Customer Show & Advantage
3 Layer Smoke Evacuator Machine Air Cleaning 7
3 Layer Smoke Evacuator Machine Air Cleaning 8
3 Layer Smoke Evacuator Machine Air Cleaning 9
Certificates
3 Layer Smoke Evacuator Machine Air Cleaning 10
Shipping & Delivery & Warranty
3 Layer Smoke Evacuator Machine Air Cleaning 11
3 Layer Smoke Evacuator Machine Air Cleaning 12
