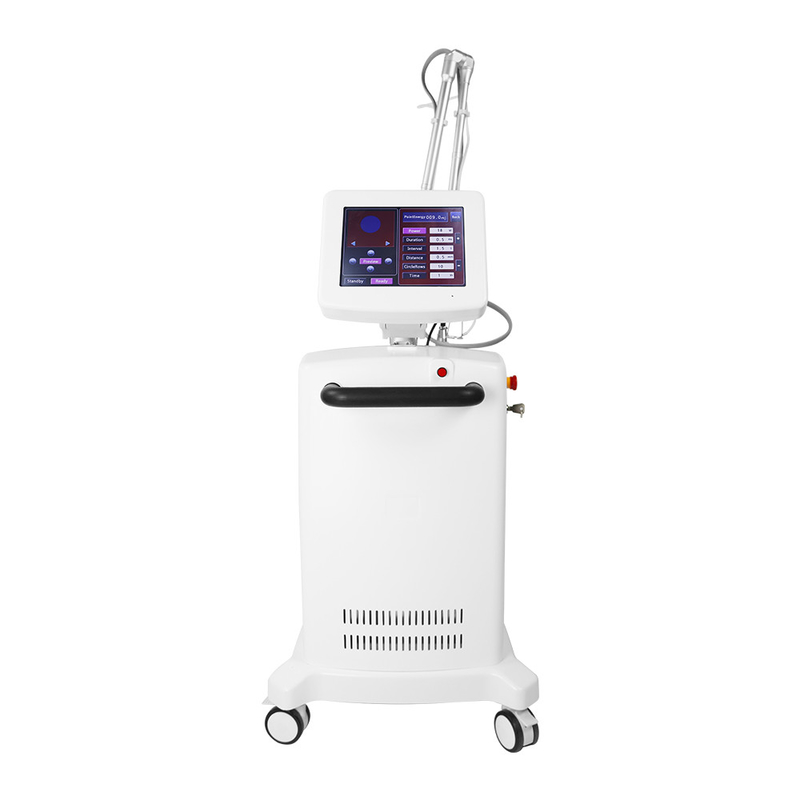

Rf Tube Wrinkle 10.4 Inch Fractional CO2 Laser Machine

Rf Tube Wrinkle 10.4 Inch Fractional CO2 Laser Machine
Rf Tube Wrinkle 10.4 Inch Fractional CO2 Laser Machine
Rf Tube Wrinkle 10.4 Inch Fractional CO2 Laser Machine Rf Tube Wrinkle 10.4 Inch Fractional CO2 Laser Machine Rf Tube Wrinkle 10.4 Inch Fractional CO2 Laser Machine

Large Image :  Rf Tube Wrinkle 10.4 Inch Fractional CO2 Laser Machine

Product Details:
Place of Origin: CHINA
Brand Name: Astiland
Certification: CE, ISO13485
Model Number: CL-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Selling Units: Single item Single package size: 70X59X113 cm Single gross weight: 94.000 kg Package Type: skin tightening anti aging scar removal fractional co2 laser skin rejuvenation laser machine Packing: aluminium box
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union, MoneyGram,Credit card,Paypal
Supply Ability: 100 sets per month

Rf Tube Wrinkle 10.4 Inch Fractional CO2 Laser Machine

Description
Q-Switch: No Laser Type: CO2 Laser
Style: Stationary Type: Laser
Feature: Acne Treatment, Face Lift, Pigment Removal, Pigmentation Correctors, Pore Remover, Skin Rejuvenation, Skin Tightening, Whitening, Wrinkle Remover Application: For Commercial
After-sales Service Provided: Free Spare Parts, Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Local After Service In Spain Warranty: 1 Year, 1 Year Free And Lifetime Maintenance
Product Name: Scar Removal Rf Tube Wrinkle High Frequency Device For Vagina Wavelength: 10600nm
Function: Skin Tighten, Whitening,wrinkle Removal,vaginal Tighten Cooling System: Air Cooling
Laser Power: 40W Scanner: Yes
Display: 10.4 Inch True Color Touch Screen Voltage: 110/230, 50/60Hz
High Light:

rf tube Fractional CO2 Laser Machine

,

10.4 inch Fractional CO2 Laser Machine

,

10.4 inch wrinkle remover machine

skin tightening anti aging scar removal fractional co2 skin rejuvenation laser machine



Vaginal Laser

CO2 non-surgical fractional laser system works by optically splitting a laser beam into a series of very small dots that are aimed at the inside wall of the vagina. At the point of contact, the laser dot removes a tiny area of tissue. This creates a microscopic pinhole around the diameter of a human hair. As the body repairs itself, it stimulates cells to create new healthy tissue at the site of the dot and immediately surrounding it. The laser also works to heat the area between dots, stimulating the activity of specialized cells that create elastin and collagen – the important component of healthy tissue. Improved blood flow and tissue tone reduces pain, improves sexual and urinary function and may increase sexual gratification. The treatment itself is low risk, relatively painless, and suitable for most women. Clinical results prove that the fast and easy-to-perform vaginal laser treatment is an effective, non-invasive procedure with minimal undesired side effects and contraindications.



Fractional Laser
It can offer the modes of dynamic scan and random scan under "fractional output" work pattern. The microprocessor-controlled system and precise optical scanner make the output laser lattice's figures, shapes and density adjustable to construct various methods, which make the treatment more flexible and better targeted. The unique intelligence-controlled random scan technology makes sure every treatment point have enough time to cool, avoids the skin injury caused by an accumulation of heat during the treatment, and decreases with side effect degree considerably while increasing the treatment effect.



Rf Tube Wrinkle 10.4 Inch Fractional CO2 Laser Machine 0



PARAMETER

Laser type RF-CO2 laser (10.6µm)
Output power 1-40W (Single pulse); 1-120W (Super pulse)
Aiming beam 635nm diode laser ≤5mw
Control panel 10.4” touch screen
Matrix form Pulsed light scanning
Scan pattern Rectangular, square, circular, oval (standard), triangular, hexagonal, and straight line
Scan points 1-4000 points
Penetrate depth 2000um(FFLS), 600um(HFLS)
Scanner focal length F=50mm(FFLS) or F=100mm(HFLS)
Max output intensity 75000W/cm2
Beam emission angle 0.4 m rad
Duration 0.1-2000ms
Pulse energy 5mj-100mj/point
Total pulse energy 125mj-1kj
Focal spot diameter ≤0.1mm(FFLS), ≤0.2mm(HFLS)
FFLS scan size 15*15mm max
HFLS scan size 20*20mm max
Cooling system Air cooling
Delivery system 7 joint articulated arm
Laser power 30W
Inhale and deflate air system optional
Working condition 20-60 relative humidity 90%
Power input 230V 60Hz, 110V 50Hz
Machine size 51cm*55cm*147cm
Gross weight 60kg



Functions

Vaginal Laser Functions
1. Tighten vagina –Fast tightening, lasting constriction, tightness to improve 60%;
2. Clean the vagina – Deep anti-aging, young level to improve 80%;
3. Moist vagina – Improving secretion, moisture level to improve 80%;
4. Pink vagina – Vulva rejuvenation, lighten pigment and pinks labia parts, delicate degree to improve 70%

Fractional Laser Functions
1. Skin renewing and resurfacing
2. Wrinkle removal, skin tightening
3. Acne and scar removal, melasma removal
4. Smooth scars like burn, surgery, traumatic, and stretch marks, etc
5. Remove intractable chloasmas and pigmentation
6. Sun damage recovery



Features

1. USA imported metal RF laser tube, compact and all metal sealed, stable performance, high power, no consumable costs.
2. 3 in 1 system, 5 probes for skin, vaginal treatment.
3. 7-jointed arm laser transmission system makes a flexible operation and fewer energy costs.
4. 10.4-inch true color LCD touchscreen, humanized software control.
5. 3 optional laser output modes: shuffle, sequential scanning and discrete scanning for all needs of surgeries.
6. Use a scanning field lens instead of focusing lens for better evenness of scan in a flat. Spot diameter 0.1mm.
7. Multiple graphics and scanning mode, the graphics could be two-way adjusted.
8. Use visible aiming beam to aim the treatment area precisely.
9. Over-heat protection, emergency stop system.
10. Inhale and deflate air system can be built in.
11. Compact structure, easy to move and maintenance



Accessory list
1 x Main Machine
1 x Laser probe
1 x Fractional laser probe
3 x Vaginal probes
1 x Light guide arm(instrument parts)
1 x Glasses
1 x Goggles
1 x Pedal
1 x Power Cord
1 x Air-duct pipes
1 x User Manual
