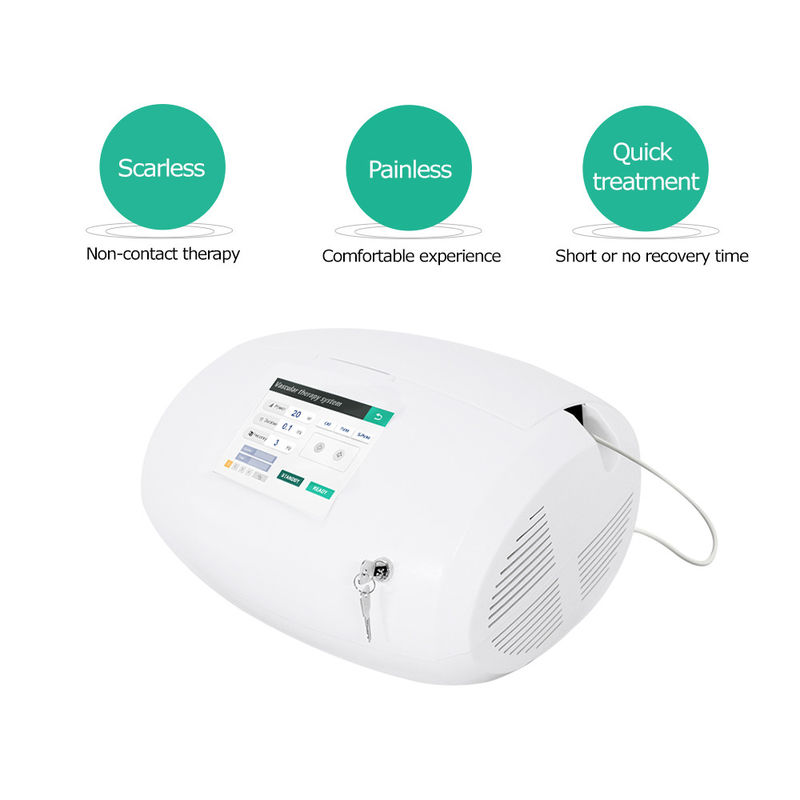

Dia2mm 635nm Spider Vein Removal Laser Machine

Dia2mm 635nm Spider Vein Removal Laser Machine

  • High Light

    Dia2mm Vein Removal Laser Machine


    635nm Spider Vein Removal Laser Machine


    Dia2mm diode laser for spider veins

  • Place Of Origin
    Hunan, China
  • Brand Name
  • Model Number
  • Q-Switch
  • Laser Type
    Diode Laser
  • Style
  • Type
  • Certification
    Ce, ISO13485
  • Feature
    Blood Vessels Removal
  • Application
    For Commercial
  • After-sales Service Provided
    Online Support, Video Technical Support
  • Warranty
    1 Year
  • Product Name
    Estetic Veins Diode Portable Laser Spider Vein Removal Machine
  • Technology
    980nm Diode Laser
  • Function
    Vascular Removal
  • Display
    Color Touch Screen
  • Case Material
  • Power
  • Indicator
    Diode Laser 635nm
  • Cooling System
    Intense Wind Cooling
  • Pulse Frequency
  • Place of Origin
  • Brand Name
  • Certification
    CE, ISO13485
  • Model Number
  • Minimum Order Quantity
  • Packaging Details
    Selling Units: Single item Single package size: 59X45X45 cm Single gross weight: 24.000 kg Package Type: estetic veins diode portable laser spider vein removal machine: carton box
  • Delivery Time
    7-10 work days
  • Payment Terms
    T/T, Western Union, MoneyGram,Credit card,Paypal
  • Supply Ability
    100 sets per month

Dia2mm 635nm Spider Vein Removal Laser Machine

estetic veins diode portable laser spider vein removal machine




Red blood caused by the capillary and venous exposure, and the skin thinning is also one of the reason. 980nm red blood vessel laser machine adopts the wavelength of 980nm laser to removal the vascular, it effective to all reason caused capillary exposure. During the treatment, it can also stimulate the collagen of the skin to regrowth and increase skin thickness and density. In this way, vascular disappear and elastic of the skin increased. Porphyrin inside of the vessel absorb the 980nm laser and it caused the blood vessel coagulation and then it disappear, laser won’t damage the skin at all.


How it works


The 980nm diode laser system is based on the thermal effect of laser, which is divided into 4 stages:

1. Laser is converted into heat

2. Heat is transferred to the vessel wall

3. The thermos chemical acts on the tissue components of vessel wall

4. The vessel wall is destroyed




Treatment range

1. EVLT (Endovenous Veins Laser Treatment)

2. Vascular lesion therapy

3. Spider Veins/face veins

4. The superficial vessels, from 0.2 to 2 mm of diameter.

* Spider veins

* Telangiectasia

* Rosacea


Machine Advantages


1. Accurate treatment with aiming light adjustable

2. 20W high energy output for professional use

3. Scarless, painless, quick treatment

4. Modern color touch screen

5. Continuous, pulse, single pulse treatment modes

6. Patented handpiece design

7. spot size adjust according to vessel diameter

8. Light weighted ABS injection case with storage space


Technology Advantages

1. 980nm laser is the optimum absorption spectrum of porphyrin vascular cells. Vascular cells absorb the high-energy laser of 980nm wavelength, solidification occurs, and finally dissipated.

2. To overcome the traditional laser treatment redness large area of burning the skin, professional design hand-piece, enable the laser beam focus onto a 0.2-0.5mm diameter range, thus more focused energy to reach the target tissue, while avoiding burn the surrounding skin tissue.

3. Laser can stimulate the dermal collagen growth while vascular treatment, increase epidermal thickness and density, so that the small blood vessels are no longer exposed, at the same time, the skin's elasticity and resistance is also significantly enhanced.

4. System based on the thermal action of the laser. The transcutaneous irradiation (with a penetration of 1 to 2 mm in the tissue) causes tissue selective absorption by hemoglobin (hemoglobin is the main target of the laser).


Dia2mm 635nm Spider Vein Removal Laser Machine 0



Laser type Diode laser
Wavelength 980nm
Laser Power 30 Watts
Work mode Single Pulse, Pulse, CW
Pulse frequency 1-5Hz
Spot size 0.5/1.0/2.0/3.0mm
Lifetime >10,000 hours
Laser conduct Fiber conduct
Pulse width 1-200ms
Indicator Diode laser 3mW 635nm
Cooling system Intense wind cooling
Body material ABS
LCD Screen 8.4 inch true color touch screen
Size 65cm*48cm*38cm
Voltage AC 220V/110V 50/60HZ 5A/10A



1 x optic fiber

1 x vascular treatment headpiece

5 x spot size adjust ring

1 x foot pedal

2 x key

1 x power supply

1 x user manual
