|Power:||1300W||Application:||Smoke Evacuator Machine, Factory Surgical Air Cleaning Machine|
|After-sales Service Provided:||Online Support, Video Support, Etc.||Type:||Commercial Use|
|Material:||Stainless Steel ABS|

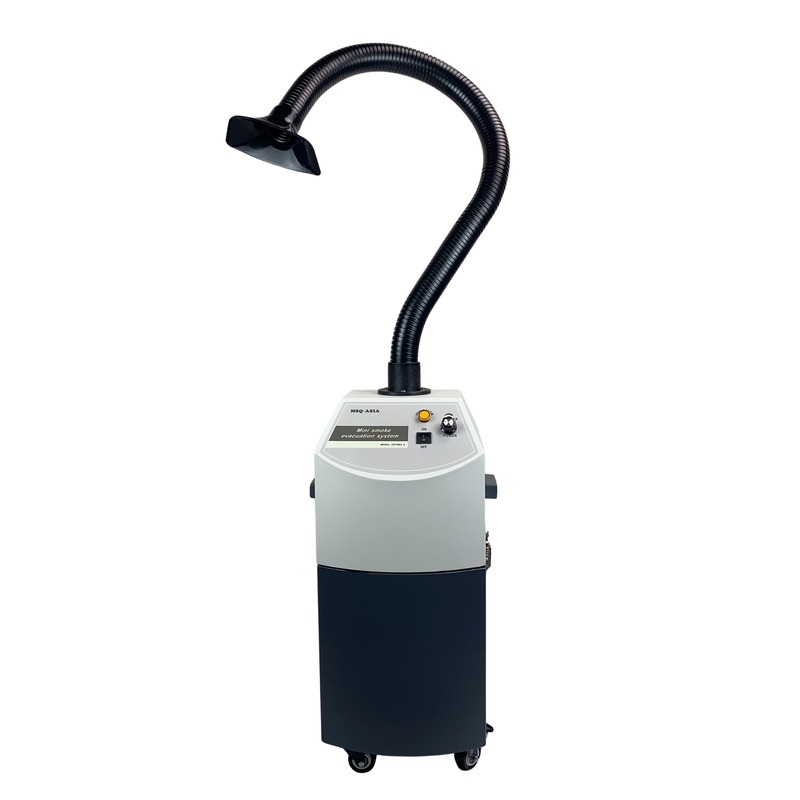

1300W Smoke Evacuation Systems,
Surgical Smoke Evacuation Clean Air Machine
Smoke Evacuation Systems Professional Clean Air Machine Surgical Use
Astiland Optima-E is a professional Smoke evacuator designed to effectively absorb and filter surgical smoke, odor, particulates, and other potentially hazardous vapor from surgery/operation. It can purify the air, reduce harmful smoke and ensure the safety of medical workers and patients.
Smoke Evacuation Systems Professional Clean Air Machine Performance Description:
When carrying out the operation by high-frequency electric knife, CO2 Laser Surgical System, Nd: YAG laser to cut, burn, vaporize, and solidify pathologically changed tissue, will produce many smoke, odor, and particulates. Such as steam, CO2, CO, HN3, HCN, H2S, viruses, and other harmful, toxic, awful, smelly oil, fog, smoke, etc.
The smoke evacuator is designed to effectively absorb and filter smoke, odours, particulates and other potentially hazardous vapours from surgery/operations. It purifies the air, reduces harmful fumes and ensures the safety of medical staff and patients.
Smoke Evacuation Systems Features
· Mini-size stationary design with universal wheel allowing for easy movement and minimizing shipping cost.
· High suction, high flow rate centrifugal pump adopted, excellent particle capture
· User-friendly panel with LED indicator, easy to set up and operate
· Long life 1-3 years filter, simple filter changes
· Filter can capture particulates and micro-organisms down to 0.012um and an efficiency of 99.99995%
Astiland Smoke Evacuation Systems Function and characteristic
1. Low noise
2. Exhaust gas can be absorbed and filtered by multilayer
3. High-speed fan can complete the movement of gas
4. Activity radius of the suction nuzzle is wide
5. Security, trustiness, availability.
The composition of the smoke plume produced during laser surgery may cause the operating room team at risk. The smoke Evacuator can be used to effectively eliminate toxic surgical smoke generated during laser surgery.
Astiland Smoke Evacuation Systems Technical parameters
|Power requirements||220±22V AC, 50±1Hz|
|7 control mode press||button switch|
|Blowing rate||0 —3.2m3/min|
|Flow rate regulation||potentiometers(non-hierarchical timing)|
|Filter mode||Activated carbon filters, ULPA filter, etc. Total 4 layers.|
|Hose diameter||Φ40 mm|
|Maximum diameter of suction nuzzle||Φ58 mm|
|Activity radius of suction nuzzle||Φ280mm|
|Filtration coefficient||more than 99.999%, 0.3 μm|
