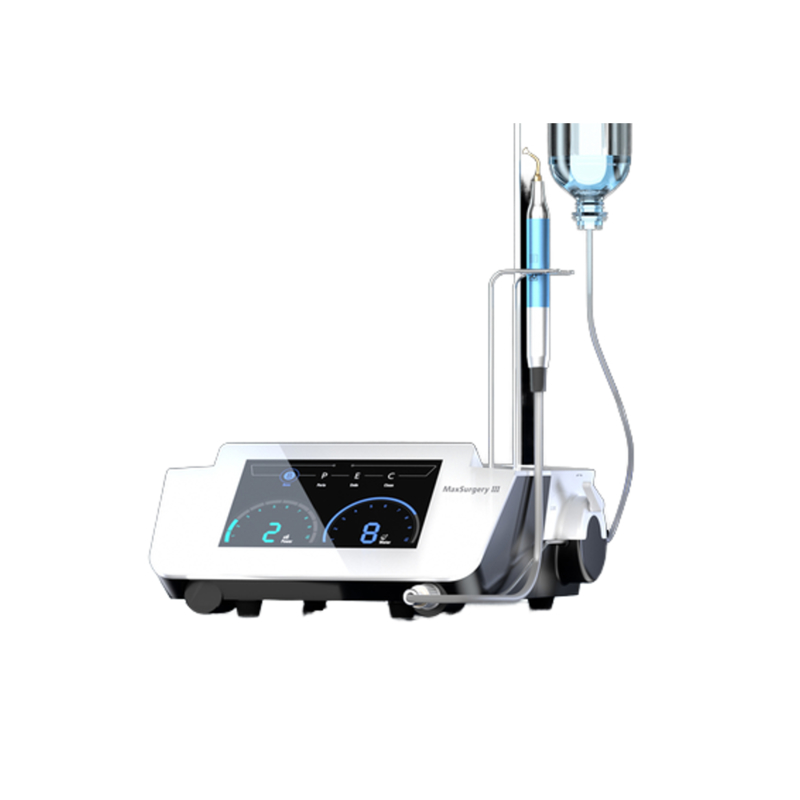

Product Description:
Designed for precision and minimal invasiveness, the Ultrasonic Bone Surgery Device applies advanced ultrasonic technology to perform accurate osteotomy in thoracic, orthopedic, facial, and aesthetic surgeries. By transforming electrical energy into ultrasonic vibration, it achieves micron-level bone cutting without damaging nearby soft tissues. The ergonomic design and intelligent cooling system enhance operational comfort and ensure reliable performance during surgery.
Work Principle:
The system employs advanced piezoelectric technology to produce ultrasonic oscillations at 26 ± 3 kHz. Upon bone contact, these vibrations accurately dissect hard tissue without affecting nearby soft tissue. Continuous water mist cooling from the peristaltic system disperses heat and avoids thermal injury, allowing consistent, precise operation with reduced bleeding and quicker healing.
Applications:
- Rib and thoracic bone remodeling
- Oral and maxillofacial operations
- Orthopedic reconstruction and bone grafting
- Facial and aesthetic bone shaping
- ENT and cranial applications
Key Features:
- 7-Inch Touchscreen: Clear HD interface for seamless setup and quick cleaning.
- Smart Cooling System: 30–125 ml/min water flow for optimal mist cooling and heat control.
- Advanced Handpiece: Lightweight and strong, with LED illumination; temperature stays 29% cooler than competitors.
- Foot Pedal Control: Switch modes and adjust settings without touching the device.
- Precise Bone Cutting: 26 ± 3 kHz frequency allows selective osteotomy with no tissue injury.
- High Safety: Consistent vibration reduces charring, bleeding, and postoperative pain.
- Fast Cutting: 28.6% higher speed improves surgical efficiency.
- Quiet Function: Low noise ensures surgeon comfort.
Micron-Level Vibrations:
Delivers ultra-fine vibration amplitudes for smooth operation, minimizing turbulence and preventing air-related complications.
Sterile Operation:
Incorporates continuous sterile saline irrigation to maintain a clean surgical field, lowering infection and aerosolization risks.
Technical Specifications:
| Item |
Specification |
| Model |
Max Surgery III |
| Display |
7" HD Touchscreen |
Over all dimensions(mm)
length x width x height |
290mm*270mm*125mm |
| Power Supply |
AC 100V - 240V, 50/60Hz |
| Input Power |
120 VA |
| Operating Frequency |
26 ± 3 kHz |
| Cooling Flow Rate |
30–125 ml/min |
| Handle Temperature (after 20 min use) |
≤ 24.8°C |
| Tip Amplitude |
< 20 μm (Axial), < 200 μm (Radial) |
| Handpiece Weight |
≤ 250g |
| Host Weight |
3kg |
Packing and Shipping:
Product Packaging:
The Aesthetic Medicine Equipment is carefully packaged in a sturdy cardboard box to ensure safe transportation. The equipment is securely cushioned with foam inserts to prevent any damage during shipping. The packaging also includes an instruction manual and any necessary accessories.
Shipping:
Once the order is confirmed, the Aesthetic Medicine Equipment will be shipped within 2 business days. We use a reliable courier service to deliver the package to your doorstep. You will receive a tracking number to monitor the shipping progress of your order. Please ensure someone is available to receive the package upon delivery.
FAQ:
Q: What is the brand name of this aesthetic medicine equipment?
A: The brand name of this equipment is Bolida.
Q: What is the model number of this aesthetic medicine equipment?
A: The model number of this equipment is Max Surgery III.
Q: Where is this aesthetic medicine equipment manufactured?
A: This equipment is manufactured in CHINA.
Q: What certifications does this aesthetic medicine equipment have?
A: This equipment is certified with IOS and CE certifications.
Q: What is the minimum order quantity for this aesthetic medicine equipment?
A: The minimum order quantity for this equipment is 1 unit.
